* SPECIFICATION

* Standard

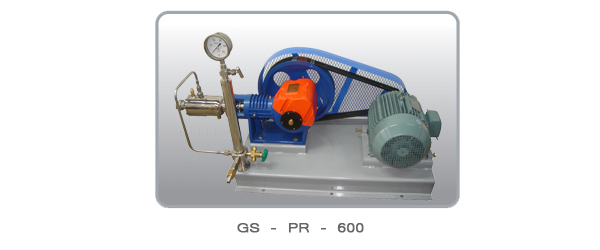

Model

GS - PR - 600

GS - PR - 600S

Fluid

LO2 / LN2 / Lar / LCO2 etc

Working Pressure

15 Mpa

2 ~ 35 Mpa

Capacity

100 ~ 600 NM3/H

100 ~ 2000 NM3/H

Design Temperature

 -196 ℃

Motor

3.7 ~ 7.5 Kw

5.5 ~ 15 Kw

Lubrication

Grease

Oil



* APPLICATION



 - Cylinder Filling
 - Hydro & Pneumatic Test
 - High Pressure Transfer
 - VVVF Conrtol - Capacity Control



* SPECIAL



 - Vacuum Jacket
 - Low Vibration
 - Low NPSH
