* SPECIFICATION * Low Pressure Type APP. Gases O2,N2,CO2,H2, etc Set Pressure Range 0.7 ~ 3.0 Mpa Design Temperature '- 196 ~ + 80 ℃ Seat diameter 8 ~ 14 MM Size 1/2B, 3/4B, 1B ~ 2 B Seat Material SOFT End Connection PT / NPT / Flange * SPECIFICATION * High Pressure Type APP. Gases O2,N2,CO2,H2, etc Set Pressure Range 3.0 ~ 25 Mpa Design Temperature '- 196 ~ + 80 ℃ Seat diameter 6 ~ 10 MM Size 1/2B, 3/4B Seat Materia SOFT End Connection PT / NPT
* SPECIFICATION

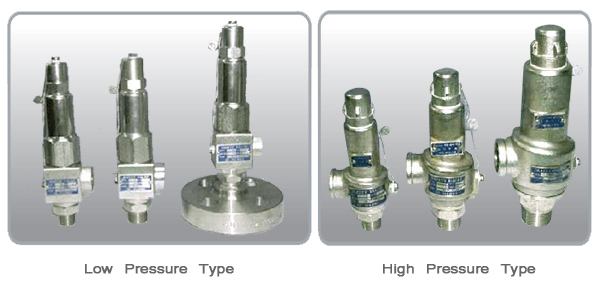

* Low Pressure Type
APP. Gases
O2,N2,CO2,H2, etc
Set Pressure Range
0.7 ~ 3.0 Mpa
Design Temperature
'- 196 ~ + 80 ℃
Seat diameter
8 ~ 14 MM
Size
1/2B, 3/4B, 1B ~ 2 B
Seat Material
SOFT
End Connection
PT / NPT / Flange
* High Pressure Type
3.0 ~ 25 Mpa
6 ~ 10 MM
1/2B, 3/4B
Seat Materia
PT / NPT
