* SPECIFICATION * Standard Model GS - PV - 2000 GS - PV - 3000 Fluid LNH3,LCO2,LC3H8, Freon, etc Working Pressure Max, 2.9 Mpa Differential Pressure Max, 0.88 Mpa Capacity Diff, 0.38 Mpa 15.9 M3/H 37.5 M3/H 780 RPM Diff, 0.2 Mpa 21.5 M3/h 45.4 M3/H 950 RPM Suction Size 2 1/2 B (65A) 3 B (80A) Discharge Size 2 B (50A) 3 B (80A) Motor 3.7~5.5 Kw 5.5~7.7 Kw * APPLICATION - Cylinder Filling - Liquid Gas Trasfer
* SPECIFICATION
* Standard
Model

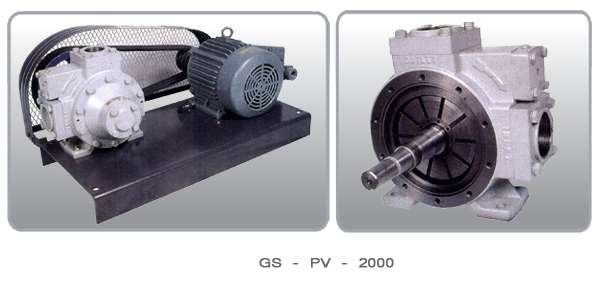

GS - PV - 2000
GS - PV - 3000
Fluid
LNH3,LCO2,LC3H8, Freon, etc
Working Pressure
Max, 2.9 Mpa
Differential Pressure
Max, 0.88 Mpa
Capacity
Diff, 0.38 Mpa
15.9 M3/H
37.5 M3/H
780 RPM
Diff, 0.2 Mpa
21.5 M3/h
45.4 M3/H
950 RPM
Suction Size
2 1/2 B (65A)
3 B (80A)
Discharge Size
2 B (50A)
Motor
3.7~5.5 Kw
5.5~7.7 Kw
* APPLICATION
- Cylinder Filling - Liquid Gas Trasfer
